Lo-Carbon MVDC-MSH Uniflex

  • Manufactured from recycled material
  • Recognised in SAP PCDB with best in class Specific Fan Power
  • Reduces your carbon footprint
  • Fitted with nine 90mm diameter extract spigots allowing quick connection to ducts
  • Complies with Building ADF
  • Option of wall, ceiling and loft mounting
  • Two switched Live connections
  • Fully variable normal, purge and boost speeds
  • Integral Humidistat
Jump to: Overview Downloads Accessories
/VA_LC_Multivent_Uniflex_Range.jpg

Product Overview

Ventilation Type
Centralised Mechanical Extract Ventilation (MEV)
Sector
New Build
Product Range
Lo-Carbon Multivent
Ducting/Connection Size
100mm

With growing concerns about accurate ventilation of properties, the Lo-Carbon Multivent MVDC range offers the option of ‘Close Control’ both in the residential and the commercial sectors. With a DC motor the multi speed Lo-Carbon Multivent is one of the most efficient central extract units available.

The units have 3 fully variable speeds: normal, boost and purge. The digital display allows accurate setting of airflow, ensuring exactly the right ventilation rate. Accurate speed control helps minimise noise and energy consumption.

The Multivent H version incorporates a built-in humidity sensor to boost the unit when humidity reaches a certain threshold.

The new Uniflexplus+ Semi-Rigid ducting range sets the standard for easy to install, low profile ducting solutions. The system gives all of the flexibility that semi-rigid ducting provides - without taking up vital space. With minimal components, the system is uncomplicated to ensure a hassle-free, speedy install.

Product Downloads

Installation Instructions

Catalogue Pages

Other Documents

Accessories

/VA_Duct_Uniflex_Coil.jpg
90mm Semi Rigid Ducting Coil 50m Length
  • Compact, low profile system
  • Highly flexible and robust
  • Crush resistant
  • PCDB listed
  • Suitable for installation in concrete
  • Corrosion resistant
  • Smooth inner surface with antistatic and antibacterial coating
  • Independently tested and accredited for air tightness
  • Class D air tightness
  • A spigot blanking cap is provided for use with single runs of semi-rigid
/VA_PIR_Sensor.jpg
Visionex PIR
  • Fits any UK single gang mounting box
  • Adjustable timer overrun (5-25 minutes)
  • Range detection up to 10 metres
  • Designed to meet IP43
  • Ambient operating temperature range 0 - 50°C
/VA_Duct_Uniflex_Valve_Collector_2.jpg
Uniflex+ 90 Degree Valve Collector 2 x 90mm 1 x 125mm
  • Compact, low profile system
  • Highly flexible and robust
  • Crush resistant
  • PCDB listed
  • Suitable for installation in concrete
  • Corrosion resistant
  • Smooth inner surface with antistatic and antibacterial coating
  • Independently tested and accredited for air tightness
  • Class D air tightness
  • A spigot blanking cap is provided for use with single runs of semi-rigid
/VA_Duct_Uniflex_Distribution_Box.jpeg
Uniflex+ Distribution Box 12x 90mm - 1 x 125mm
  • Compact, low profile system
  • Highly flexible and robust
  • Crush resistant
  • PCDB listed
  • Suitable for installation in concrete
  • Corrosion resistant
  • Smooth inner surface with antistatic and antibacterial coating
  • Independently tested and accredited for air tightness
  • Class D air tightness
  • A spigot blanking cap is provided for use with single runs of semi-rigid
/VA_Duct_Uniflex_Distribution_Box.jpeg
Uniflex+ Distribution Box 8 x 90mm 1 x 125mm
  • Compact, low profile system
  • Highly flexible and robust
  • Crush resistant
  • PCDB listed
  • Suitable for installation in concrete
  • Corrosion resistant
  • Smooth inner surface with antistatic and antibacterial coating
  • Independently tested and accredited for air tightness
  • Class D air tightness
  • A spigot blanking cap is provided for use with single runs of semi-rigid
/VA_Duct_Uniflex_Straight_Adaptor.jpg
Uniflex+ Straight Valve Adaptor 2 x 90mm 1 x 125mm
  • Compact, low profile system
  • Highly flexible and robust
  • Crush resistant
  • PCDB listed
  • Suitable for installation in concrete
  • Corrosion resistant
  • Smooth inner surface with antistatic and antibacterial coating
  • Independently tested and accredited for air tightness
  • Class D air tightness
  • A spigot blanking cap is provided for use with single runs of semi-rigid
/VA_Duct_Uniflex_Coil.jpg
90mm Semi Rigid Ducting Coil 25m Length
  • Compact, low profile system
  • Highly flexible and robust
  • Crush resistant
  • PCDB listed
  • Suitable for installation in concrete
  • Corrosion resistant
  • Smooth inner surface with antistatic and antibacterial coating
  • Independently tested and accredited for air tightness
  • Class D air tightness
  • A spigot blanking cap is provided for use with single runs of semi-rigid
Uniflex+ RV Valve Brochure

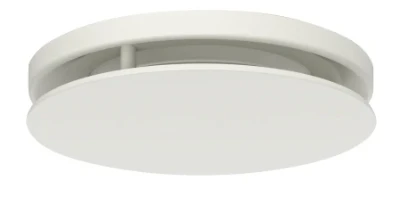

Uniflex+ Adjustable Round Valve Standard
  • One valve for air supply and extraction: suitable for up to 21 l/s
  • Easy to adjust: 26 lockable positions for setting the air volume
  • Excellent performance: the lowest noise and pressure drop values
  • Same appearance for each volume of air: External dimensions stay the same irrespective of the selected setting
  • Low turbulance airflows: prevents accumilation of dirt around the valve
  • Flexible installation for all types of air ducts with connection 116mm or 125mm
  • Easy to clean: no need to remove the valve base
  • Multiple designs available to suit various interior styles
Uniflex+ RV Valve Brochure
Uniflex+ Adjustable Round Valve Large
  • One valve for air supply and extraction: suitable for up to 21 l/s
  • Easy to adjust: 26 lockable positions for setting the air volume
  • Excellent performance: the lowest noise and pressure drop values
  • Same appearance for each volume of air: External dimensions stay the same irrespective of the selected setting
  • Low turbulance airflows: prevents accumilation of dirt around the valve
  • Flexible installation for all types of air ducts with connection 116mm or 125mm
  • Easy to clean: no need to remove the valve base
  • Multiple designs available to suit various interior styles
Uniflex+ RV Valve Brochure
Uniflex+ Adjustable Square Valve
  • One valve for air supply and extraction: suitable for up to 21 l/s
  • Easy to adjust: 26 lockable positions for setting the air volume
  • Excellent performance: the lowest noise and pressure drop values
  • Same appearance for each volume of air: External dimensions stay the same irrespective of the selected setting
  • Low turbulance airflows: prevents accumilation of dirt around the valve
  • Flexible installation for all types of air ducts with connection 116mm or 125mm
  • Easy to clean: no need to remove the valve base
  • Multiple designs available to suit various interior styles
/Ecotronic_Humidity%20Sensor_LEFT.jpg
Ecotronic Humidity Sensor
  • Setting range 65% - 90%RH
  • Maximum switching load 1 Amp inductive
  • Pullcord override indicated by lamp
  • Ambient operating temperature 0°C to +40°C
  • Dimensions: 87 x 87 x 33mm. (H x W x D)
  • Dimensions: 87 x 87 x 33mm. (H x W x D)
/VA_Ambient_Humidity_Sensor.jpg
Ambient Response Humidity Sensor
  • Pullcord override and indication light
  • Changeover relay switch
  • Operating range 30% - 90%RH
  • Ambient operating temperature 5°C to 40°C
  • 220-240V AC
  • Fits single fang box for surface mounting
