Lo-Carbon Sentinel T-Series 9” Wall Fan

  • Extract/intake model in 2 sizes; 9” and 12”
  • Compatible with a wide range of IAQ sensors
  • One model with wired & wireless communication
  • Energy-efficient EC3 motors
  • Lo-Carbon 5-year warranty
  • Secure natural ventilation
  • Easy-fit connector Top Socket, standard on all models
Jump to: Overview Downloads Accessories
/Lo-Carbon-T-Series-Wall-Model.jpg

Product Overview

Ventilation Type
Commercial Ventilation
Sector
Commercial
Product Range
Lo-Carbon Sentinel T-Series

UK’s No. 1 Commercial Fan
The Lo-Carbon Sentinel T-Series Fan range features an energy-efficient EC3 motor, designed to improve performance, reduce running costs, and maintain the T-Series’ rugged reliability.

To further enhance indoor air quality, the Lo-Carbon Sentinel T-Series is now compatible with a wide range of sensors and switches, and is available with both wired and wireless communication.

One product with flexibility: our new design allows you to select wired or wireless communication on site, no need for separate models.

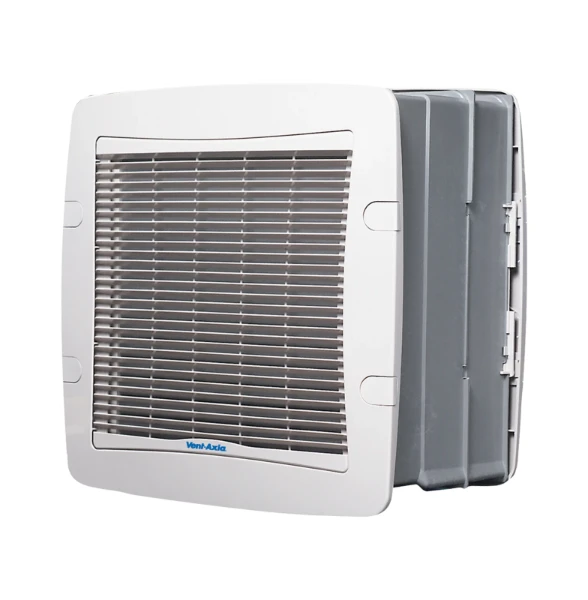

Wall Fan
Lo-Carbon Sentinel T-Series wall models are designed to fit directly into double brick, solid and cavity walls. The two-part telescopic liner accommodates wall thicknesses from 240 to 315mm.

For thicker walls additional liner sections are available. Lo-Carbon Sentinel T-Series wall models are provided with internal and external wall frames which fit flush with both faces of the wall.


Instantaneous Shutter
With energy saving in mind, Lo-Carbon Sentinel T-Series models are supplied complete with an integral, instantaneous, automatic louvre shutter concealed behind the interior grille.

It will operate on both intake and extract and at any angle of mounting. The shutter is electronically controlled by an actuator with a damped action giving quiet operation during instant opening and closing.

When the fan is used with a Lo-Carbon Sentinel T-Series controller, the shutter can be set open with the fan motor switched off to provide natural ventilation without the security risk of an open window.


Electrical
Motor purpose-designed. Suitable for running at any angle. Quiet running, enclosed. Suitable for operation in ambient temperatures from
-20°C to +40°C. Fitted with self resetting Standard Thermal Overload Protection (S.T.O.P.).

Supply voltage 220-240V/1/50Hz.


Top Socket
A connector Top Socket is standard on all T-Series fans. Allowing fast and trouble-free mains connection.


Easy Cleaning
Integrated component design allows all parts to be dismantled for cleaning without the use of specialist tools.
